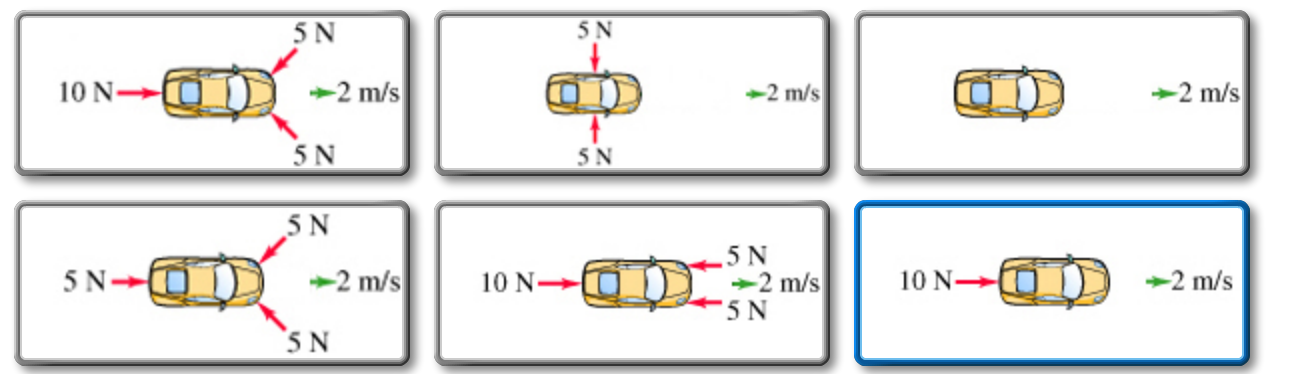

Below are birds-eye views of six identical toy cars moving to the right at 2 m/s. Various forces act on the cars with magnitudes and directions indicated below. All forces act in the horizontal plane and are either parallel or at 45 or 90 degrees to the car's motion. Rank these cars on the basis of their speed a short time (ie. before any car's speed can reach zero) after the forces are applied.
Rank from largest to smallest. To rank items as equivalent, overlap them.

Question

Below are birds-eye views of six identical toy cars moving to the right at 2 m/s. Various forces act on the cars with magnitudes and directions indicated below. All forces act in the horizontal plane and are either parallel or at 45 or 90 degrees to the car's motion. Rank these cars on the basis of their speed a short time (ie. before any car's speed can reach zero) after the forces are applied.
Rank from largest to smallest. To rank items as equivalent, overlap them.

anonymous · Answer

http://media.cheggcdn.com/media%2F834%2F834daa94-38a9-4f64-bfa9-d6ecd35656c8%2FphpJ6Ryfh.png

anonymous · Answer

6th - fastest
2nd, 3rd and 5th - same speed
1st - slower than above
4th - slowest

anonymous · Answer

When I have put my answers in, it says: A large force of 10 N forward will result in a car accelerating and the largest increase in speed.

anonymous · Answer

|dw:1411429888851:dw|
