Question

okay lets get this straight I am very bad at geometry
can anyone with the time to help me, please help me

Answer 1

What is the question?

Its alright having a bad subject we all do, mine for example is history, though we ask around for help to better understand it :D

Answer 2

thank you. so can you help me, please?

Answer 3

Yes, but you seem to have only posted the diagram and the answers. What is the question for this?

Answer 4

it is matching the constructions

Answer 5

i think this is for all of the following too.

Answer 6

Ok...

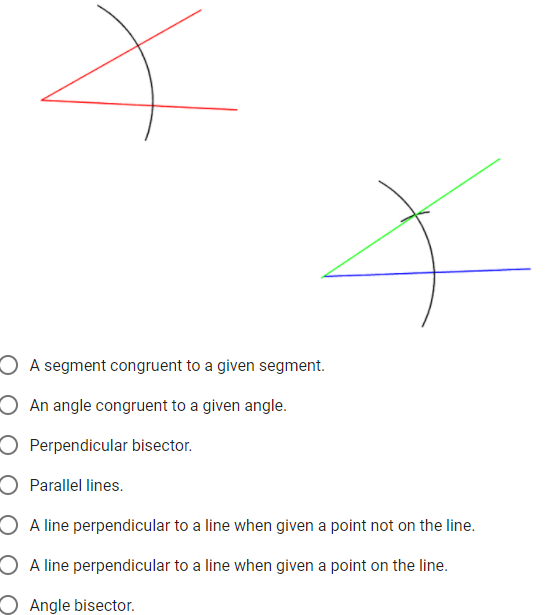

Well we have two angles that are congruent to each other. We see that for the red triangle we draw an arc from the vertex of the angle and we keep this distance. We then apply this to the green-blue angle and create a similar arc. With this we can draw a smaller arc with the start at the intersection of the large arc and the blue line. This creates a sort of cross. We then begin to draw a line through this cross. This will create an angle congruent to that of the other. Which means that the answer to this question is B.

Answer 7

can i ask you a couple more?

Answer 8

sure

Answer 9

thank you so much

Answer 10

Is that the only photo?

Answer 11

no it didn't do both?

Answer 12

I don't see another. I only got the one with the answer choices.

Answer 13

there we go

Answer 14

First I'll ask. `Which do you think is correct?`

Answer 15

an angle bisector

Answer 16

Not quite. Remember your first question? That was an angle bisector. They both differ from each other, but it definitely is a bisector of sorts.

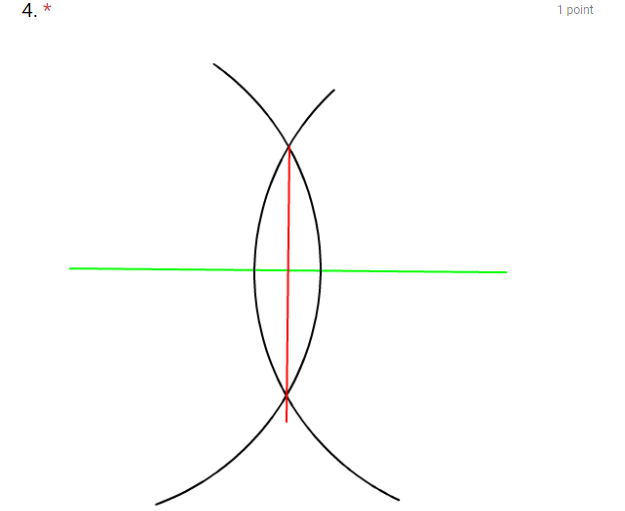

We are given a green line, we see that arcs are drawn from either end of the line segment with each having the same distance from the end of each side the segment. This means that the arcs drawn will create an intersection on either side of the line (each being the same distance from the line) we draw a line through this and see we have created a perpendicular bisector. This means that the line is bisected to create 90 degree angles.

Answer 17

Can you visualize what I typed?

Answer 18

sort of

Answer 19

Here is a great visual of it :)

https://www.youtube.com/watch?v=XXI60B3m70Y

Answer 20

okay thank you

Answer 21

your welcome :) Next one?

Answer 22

sure

Answer 23

i think it might be a line segmant of some sort

Answer 24

Is this for the next question?

Answer 25

and yes

Answer 26

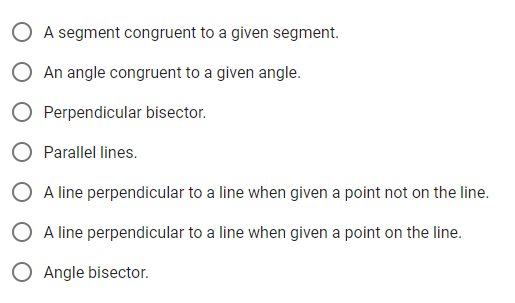

Are the answer choices the same for this one?

Answer 27

yes they are

Answer 28

Well it is creating a line...

One sec.

Answer 29

We are given a green line and we have a blue dot (but it seems to be not given). We place our compass on this dot and create a circle. We then place our compass on either side (where the line and the circle meet) and draw arcs `on either side`. We then take our ruler and draw a line through it. I do believe this to be E due to the not given blue dot.

Answer 30

thank you
