Question

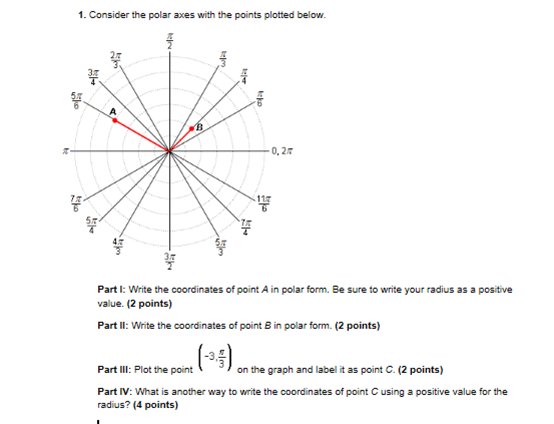

4 part question

Answer 1

part I: for the r value you just need to see how long the red line is on A

then for the theta value just see which angle the line lies on

then write your solution as (r, theta)

Answer 2

(3,5pi/6)

Answer 3

careful, it goes out to 4 units so (4,5pi/6)

then repeat this process for part II on line B

Answer 4

(2,pi/4)

Answer 5

good

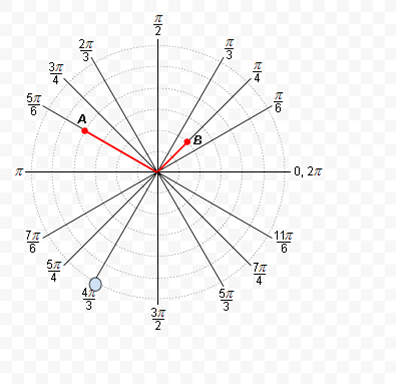

then for part III you have (-3, pi/3)

first you will find the appropriate line for pi/3, but since we have -3 you will go in the opposite direction as you would normally do, then go out 3 units

lmk if you're having some trouble w/ this step

Answer 6

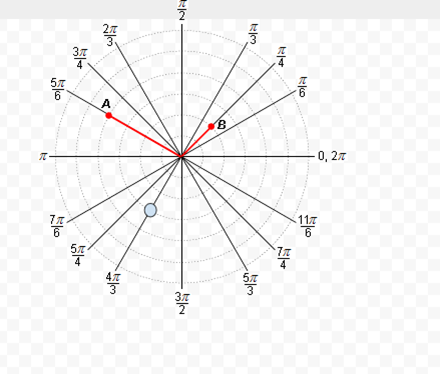

it doesn't go out that far, it's only 3 units

Answer 7

good

then for part IV you just take (-3, pi/3), multiply the r value by -1 and add pi to the theta

Answer 8

so 3

Answer 9

good but what about theta?

Answer 10

4pi/3

Answer 11

good so your sol'n is (3,4pi/3)

Answer 12

so part IV i dont know that one:/

Answer 13

(3,4pi/3) is the solution for part IV
