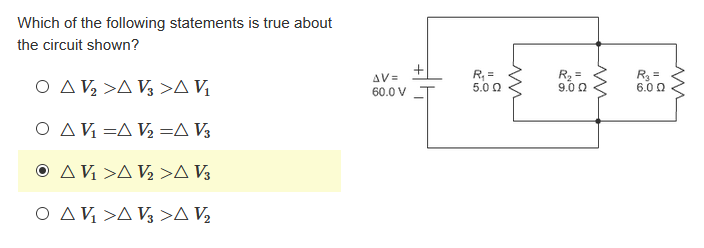

Which of the following statements is true about the circuit shown?

Answer 1

i thought i could come to a conclusion of a answer but i am actually very confused

Answer 2

looks scary, I feel ya

Answer 3

haha yes!

Answer 4

will you be able to help me?

Answer 5

so we have three resistors in parallel

Now you can see that each one has a different resistance

But you should know and keep in mind that the voltage through each resistor in parallel will be the same. The current through each resistor in parallel will be different

Answer 6

And that's vice versa for resistors in series

For resistors in series, the current will be the same for each resistor but the voltage will not be the same

Answer 7

So, it would just be B ? where they all equal ?

Answer 8

Bingo!

Answer 9

Awesome! makes sense (:

Answer 10

Perfect!!
