Question

last one !! yayyyy!

im including both last questions because they are similar.

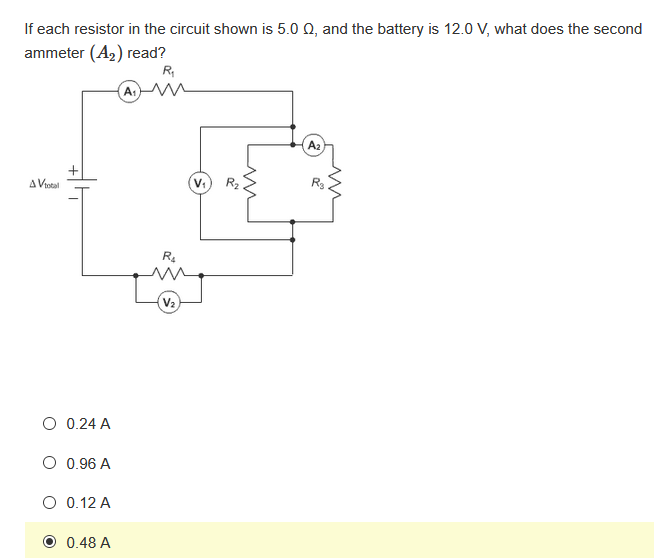

If each resistor in the circuit shown is 5.0 Ω, and the battery is 12.0 V, what does the second ammeter (A2) read?

0.24 A

0.96 A

0.12 A

0.48 A

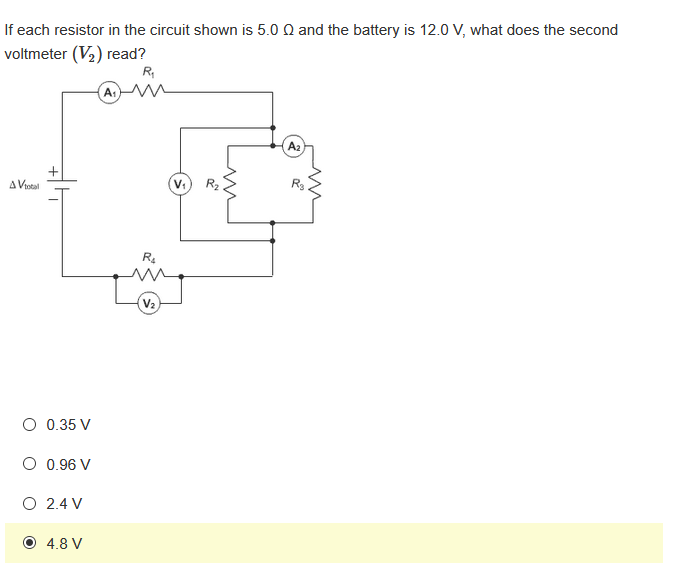

first image is for this question

Answer 1

If each resistor in the circuit shown is 5.0 Ω, and the battery is 12.0 V, what does the second ammeter (A2) read?




0.24 A

0.96 A

0.12 A

0.48 A

Answer 2

heres the second question , i believe there somewhat similar ?

Answer 3

i think the first 1 is 4.8 and second is 0.48 ?

Answer 4

Doing the first one and it looks familiar and that's correct

Answer 5

awesome!

Answer 6

Second one also looks familiar but you didn't quite get it

Answer 7

oh no! let me relook at it

Answer 8

What would the total resistance be?

And then plug that into V=IR

And solve for current

Answer 9

R2 and R3 are in parallel, so resistance is (r2 * r3)/ (r2+r3) = 25/10 = 2.5 ohms


the resistance of the entire circuit is R4 + 2.5 ohms + R1 = 12.5 ohms



The current in the circuit V/R = I 12 v/ 12.5 ohms = 960 mA



R2 and R3 split this current 960/2 = 480 mA (or .48 A )
