Question

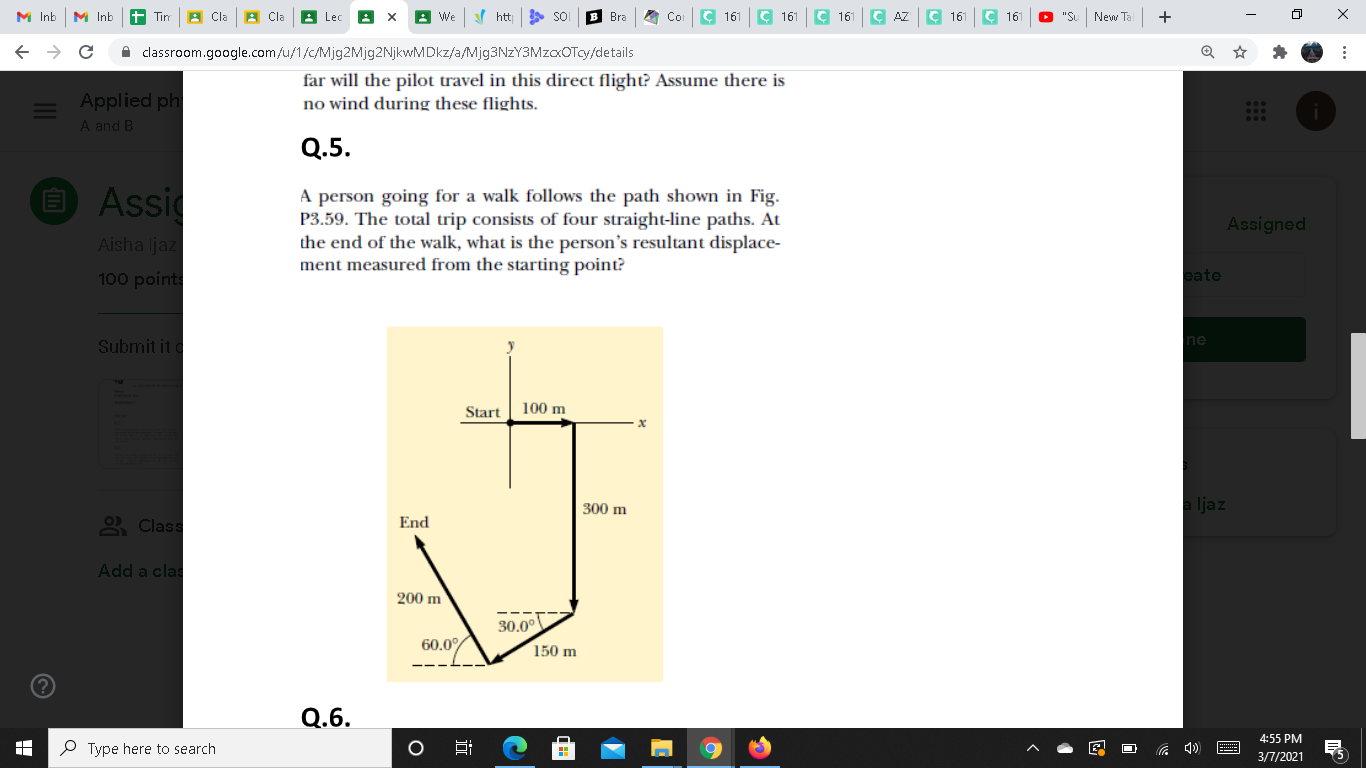

physics question

Answer 1

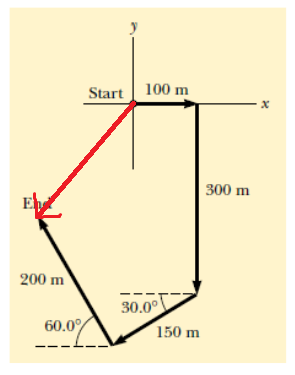

how would we calculate the resultant vector in red?

Answer 2

you have to take the 4 vectors and break them into the x and y components
and add all the x-components and add all the y-components

and then you can find the magnitude and the angle

Answer 3

do you understand? @Ahmad234

Answer 4

Oh, have a look at this -- https://cdn.numerade.com/encoded/df209437-f9f3-4191-b45a-f62f73e9c6dc.webm

Answer 5

@AZ I donot understand

Answer 6

??

Answer 7

I don't understand angles ? @AZ

Answer 8

thats sad

Answer 9

@Ahmad234

so
A = 100 m east
B = 300 m south
C = 150 m 30 degrees south from west
D = 200 m 30 degrees west from north

Answer 10

A only has an x-component
B only has a y-component





does that help?

Answer 11

you have to remember
sin 30 = opposite side / hypotenuse
we know the hypotenuse is 150
so

sin 30 = opposite side /150
and so
opposite side = 150 * sin 30

and the opposite side = y-component
and since it is in the third quadrant, the sin value will be negative

and similarly for the x-component, it would be cos
anad cos is negative in the second quadrant

Answer 12

thanks

Answer 13

No problem! Let me know if you want me to check your work

Answer 14

yes

Answer 15

check my work

Answer 16

?

Answer 17

I don't see image?

Answer 18

same
