programming help

Question

programming help

Gucchi · Answer

Write a program to draw a picture by defining functions and using Turtle Graphics. Use the following guidelines to write your program.

Give your artwork a name. Print the name to the output
Draw a picture using the turtle. You can pick the subject of your picture. Some suggestions include a house, a car, a face, a robot.
At least two programmer-defined functions must be used.
Use at least one color apart from black.
The picture should include color.

Gucchi · Answer

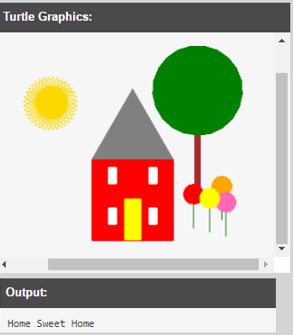

i want my output to turn out like

Gucchi · Answer

@smokeybrown and heres that video: https://drive.google.com/file/d/1esakvSILRb55X2pcEpiQ91AydGQCmNSs/view

Gucchi · Answer

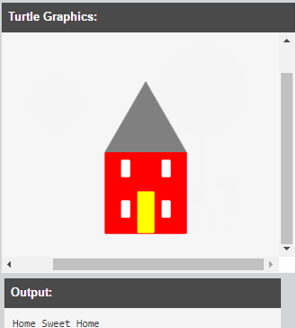

basically were doing the same program but with color

SmokeyBrown · Answer

Seems pretty ambitious!

It seems like we can use a lot of the same knowledge from our previous program. And like you rightly pointed out, we'll be using solid colored shapes this time around, instead of just lines.
Very cool. Well, the pictures may seem complicated, but it looks like they can be broken down into various simple shapes, so that might be a good place to start.

I have a feeling we're going to need quite a bit of trial and error for this one...

Gucchi · Answer

hmm, yeah, this one may have a lot of steps

Gucchi · Answer

first we start with import turtle, then def main() so

Gucchi · Answer

import turtle

def main()

SmokeyBrown · Answer

Yup, I'd say that's a good start.

Before we go any further, I want to make sure you're ok with the drawing we've chosen. I mean, the one in the screenshot above is just an example, so you don't have to use that one. Of course, you can if you want to

Gucchi · Answer

i was thinking we can do a boat

Gucchi · Answer

like a sailboat, a simple one

Gucchi · Answer

what do you think?

SmokeyBrown · Answer

Yeah, that sounds good to me!
A sailboat would be less complicated, made up of a few simple shapes.

In terms of the structure of the code, we could probably define a function for the bottom of the boat, the mast, and the sail

SmokeyBrown · Answer

More specifically, I guess the bottom of the boat would be some sort of polygon, the mast would probably be a rectangle, and the sail would probably be a triangle

Gucchi · Answer

@smokeybrown wrote:

Yeah, that sounds good to me! A sailboat would be less complicated, made up of a few simple shapes. In terms of the structure of the code, we could probably define a function for the bottom of the boat, the mast, and the sail

so how would i start defining the function

Gucchi · Answer

wait first i would = turtle.Turtle() im going to name it "kitt"

Gucchi · Answer

so kitt = turtle.Turtle()

RodWav3 · Answer

i want to learn how to program i never tried it

SmokeyBrown · Answer

Since we'll be using some different shapes in the drawing (meaning we want the drawing tool to behave differently), I think it would be appropriate to define a function for each of the simple shapes we'll need. The function definition would be similar to in the video, basically def (): For example, if you wanted to define a function to draw a red rectangle of a given length and width at a given position, you could define a function like def rectangle(turtle, xCoord, yCoord, length, width): turtle.color("red") turtle.setPos(xCoord, yCoord) for i in range(2): turtle.forward(length) turtle.right(90) turtle.forward(width) turtle. right(90) And then you'd be able to call the "rectangle" function with the appropriate parameters in the main function every time you wanted your program to draw a rectangle. You could even add a parameter for color if you wanted that to be changeable, or you could take away certain parameters if you wanted the size or position of the rectangle to be pre-defined. The point of functions is they allow your program a lot of flexibility with their parameters and they save you the trouble of rewriting code that you expect to reuse. It's good that you're getting some practice in how to use them!

SmokeyBrown · Answer

@rodwav3 wrote:

i want to learn how to program i never tried it

Anybody can program, and there's lots of resources available to start learning! Plenty of them are free too, so anyone with an internet connection and free time can access them. Right now, I'm actually looking at a free Microsoft course about C# programming language; you can check out Microsoft's learning courses with a quick internet search. Other good resources I've used in the past include w3 schools, leetcode, and codecademy. It can be overwhelming to start with--there is an ocean of information out there. As long as you take things step-by-step in a guided way, I think it should be manageable. If you want to learn, I think you should give it a try! You may be surprised at how much you're able to learn :)

Gucchi · Answer

@smokeybrown wrote:

Since we'll be using some different shapes in the drawing (meaning we want the drawing tool to behave differently), I think it would be appropriate to define a function for each of the simple shapes we'll need. The function definition would be similar to in the video, basically def (): For example, if you wanted to define a function to draw a red rectangle of a given length and width at a given position, you could define a function like def rectangle(turtle, xCoord, yCoord, length, width): turtle.color("red") turtle.setPos(xCoord, yCoord) for i in range(2): turtle.forward(length) turtle.right(90) turtle.forward(width) turtle. right(90) And then you'd be able to call the "rectangle" function with the appropriate parameters in the main function every time you wanted your program to draw a rectangle. You could even add a parameter for color if you wanted that to be changeable, or you could take away certain parameters if you wanted the size or position of the rectangle to be pre-defined. The point of functions is they allow your program a lot of flexibility with their parameters and they save you the trouble of rewriting code that you expect to reuse. It's good that you're getting some practice in how to use them!

m

@smokeybrown wrote:

More specifically, I guess the bottom of the boat would be some sort of polygon, the mast would probably be a rectangle, and the sail would probably be a triangle

so first we would want to define a function to write a polygon right?

SmokeyBrown · Answer

Back to the program we're looking at, it might make sense for us to define a function for the sail and a function for the base of the boat at least. We can add other functions if needed as we go

Consider what details of these shapes should be adjustable, and that will inform the parameters you give the function. The body of the function should include the behavior for drawing the shape itself, plugging in the parameters as needed

SmokeyBrown · Answer

Yeah, I think defining a function to draw a polygon would be a good place to start

RodWav3 · Answer

but theres a lot of codes and stuff

RodWav3 · Answer

like numbers and letters and i be forgettin them

RodWav3 · Answer

only know this code

SmokeyBrown · Answer

@rodwav3 wrote:

but theres a lot of codes and stuff

It's true that there's a lot of information to remember. It really does get easier with practice. And no one can remember everything. That's ok! I make mistakes all the time when writing code, and I forget things too. It doesn't bother me that much because I know I can always look things up if I need help. That's the great part about learning, you never really stop learning

Gucchi · Answer

@smokeybrown wrote:

Since we'll be using some different shapes in the drawing (meaning we want the drawing tool to behave differently), I think it would be appropriate to define a function for each of the simple shapes we'll need. The function definition would be similar to in the video, basically def (): For example, if you wanted to define a function to draw a red rectangle of a given length and width at a given position, you could define a function like def rectangle(turtle, xCoord, yCoord, length, width): turtle.color("red") turtle.setPos(xCoord, yCoord) for i in range(2): turtle.forward(length) turtle.right(90) turtle.forward(width) turtle. right(90) And then you'd be able to call the "rectangle" function with the appropriate parameters in the main function every time you wanted your program to draw a rectangle. You could even add a parameter for color if you wanted that to be changeable, or you could take away certain parameters if you wanted the size or position of the rectangle to be pre-defined. The point of functions is they allow your program a lot of flexibility with their parameters and they save you the trouble of rewriting code that you expect to reuse. It's good that you're getting some practice in how to use them!

do i still write def main() and then def polygon or do i just begin with def polygon?

RodWav3 · Answer

@smokeybrown wrote:

@rodwav3 wrote:

but theres a lot of codes and stuff

It's true that there's a lot of information to remember. It really does get easier with practice. And no one can remember everything. That's ok! I make mistakes all the time when writing code, and I forget things too. It doesn't bother me that much because I know I can always look things up if I need help. That's the great part about learning, you never really stop learning

yea but seems too complicated

SmokeyBrown · Answer

@gucchi wrote:

do i still write def main() and then def polygon or do i just begin with def polygon?

That's a good question. When defining your own functions like we're doing here, you would want to define them outside of the main function. That way, you can call them from inside the main function. At least, that's how it seems to work in Python. I seem to recall things working a little differently in Java, but that's neither here nor there

Gucchi · Answer

so:
def main

def polygon

Gucchi · Answer

ohh wait

Gucchi · Answer

mb

Gucchi · Answer

def polygon

def main()

like this

SmokeyBrown · Answer

Closer. Make sure that
def polygon():

and

def main():

are on the same level of indentation so that your main definition doesn't end up inside your polygon definition or vice-versa. It's important that we keep the functions separate for this program.

Gucchi · Answer

i need help with the coords though, im always confused with these

SmokeyBrown · Answer

Oh sure, the coordinates could take a bit of trial-and-error, but I think there is some reasoning to them.
Whenever you use the .setPos() function (I think I wrote that correctly), you're picking up the "turtle" and putting it down at the coordinate you set. That's the point that it will start drawing from the next time it moves

So, suppose our turtle, dan, starts at (0,0) and we make it draw a 10-length line to the right. After it finishes drawing the line, it ends up at (10,0). Then, if we want the turtle to start drawing from the middle of that line, we could use dan.setPos(5,0) to put him at that point. The next line or shape dan starts drawing will be from the coordinate point we set him at

Kind of a silly example, but I hope that makes things easier to understand

SmokeyBrown · Answer

In terms of the sailboat drawing we're working on, the shapes we're drawing do have some positional relationship to each other.
For instance, the polygon that represents the base of the boat will be somewhere below the triangle that represents the sail. If we have a rectangle to represent the mast, that would probably be above the base and to the side of the sail. And so on.
In other words, the coordinates don't matter in an absolute sense, but they do matter in a relative sense, so that the shapes we're using fit together nicely in the final image

Gucchi · Answer

okay ill brb give me 5 minutes

Gucchi · Answer

i think i understand this a bit better now

SmokeyBrown · Answer

I think the best way to figure it out would be to start at a position and draw from there, then make adjustments as needed. If the shape is a little too far to the left, for example, we could increase the x-coordinate. If it's too far to the bottom, increase the y-coordinate. Etc. Just a matter of trial-and-error, even in the worst case

SmokeyBrown · Answer

I would also like to correct myself; I've been using the function "setPos()" when it should be written as goto(). I repeat, goto() is the correct function for setting the coordinate position. Guess my wires got crossed :)

Gucchi · Answer

so i started the code like:
import turtle

def polygon(turtle, 0,0):

def main():

Gucchi · Answer

it would start at 0,0 right?

Gucchi · Answer

and for length and width

Gucchi · Answer

also for the speed?

Gucchi · Answer

would we put 10?

SmokeyBrown · Answer

@gucchi wrote:

it would start at 0,0 right?

Normally, in function definitions, you use variables for the parameters. These variables can be referenced in the body of the functions. If you defined them as hard-coded values, then you might as well just write the values directly in the body of the function

@gucchi wrote:

and for length and width

Length and width as well as the angles of your polygon could potentially be parameters of your function as well. Alternatively, you could forego including these parameters and just hard-code the values into your function. Both are possibilities

@gucchi wrote:

also for the speed?

The speed won't affect the appearance of the final drawing, only how quickly the "turtle" "walks" across the page as it draws. You can set this to be anything or just leave it as the default

Gucchi · Answer

i also want to try making a shape like:

Gucchi · Answer

can you give an example with numbers on how to write this?

SmokeyBrown · Answer

Ah, a trapezoid. Good choice for the base of a boat. I thought you might suggest that, so I put together a piece of code for drawing a trapezoid while I was waiting
Please note that you can adjust the lengths and angles of the trapezoid based on your preference. In any case, the code might look something like this:

import turtle

def boatBase(turtle, xCoord, yCoord):
	turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.forward(40)
	turtle.left(30)
	turtle.forward(30)
	turtle.left(150)
	turtle.forward(90)
	turtle.left(150)
	turtle.forward(30)
	turtle.left(30)
def main():
	donald = turtle.Turtle()
	donald.color("brown")
	boatBase(donald, 5,5)
main()

I'm happy to break down any parts of the code you like, if that would make it easier to understand. Naturally, I don't encourage you to blindly copy-paste this code I've written, but I hope it can serve as a guide or inspiration for your own code :)

Gucchi · Answer

for the x coord and y coord, do i have to put anything there because it created a trapezoid for me?

SmokeyBrown · Answer

@gucchi wrote:

can you give an example with numbers on how to write this?

Sure. In that case, most of the details of the shape are defined by the parameters. Rather than hard-coded ahead of time, the values of the coordinates and length and width are decided when the function is called. The function call might look like rectangle(donald, 10, 10, 9, 16) Which would tell the rectangle function to use the turtle donald to start from position (10,10) and draw a rectangle with length of 9 and width of 16. That is, assuming the body of the rectangle function is written properly to use those parameters

Gucchi · Answer

attachment

SmokeyBrown · Answer

@gucchi wrote:

for the x coord and y coord, do i have to put anything there because it created a trapezoid for me?

You see in the main function, where the boatBase function is called; the line "boatBase(donald,5,5)" We could change those parameters, which would change the position of the shape. The shape would be the same, since that is determined by the code inside the function. But the parameters, in this case, are written to determine the position To demonstrate, we could add another line after the first boatBase() call boatBase(donald, 50, 5) This would draw another trapezoid above the original one

Gucchi · Answer

Okay

Gucchi · Answer

so how we fill in the boat with color now?

SmokeyBrown · Answer

I want to emphasize again that the parameters you choose to define for any given function depend entirely on how much flexibility or control you want over the behavior of that function.
We could take away the xCoord and yCoord parameters from the boatBase() function, which would be perfectly fine. We would be sacrificing the flexibility of choosing where the shape, but we would get more control in the sense that the position of the shape would always be the same.
In the same way, we could add parameters for color, distance, speed, etc. Or we could define these values as set and unchanging inside the function itself, kind of as they are.

SmokeyBrown · Answer

@gucchi wrote:

so how we fill in the boat with color now?

I think the Turtle functions for filling a polygon are begin_fill() and end_fill() I'll take just a moment to test this in my code...

Gucchi · Answer

Okay

SmokeyBrown · Answer

Ok, looks like it worked :) Here is the code I used, with the addition of those fill commands

import turtle

def boatBase(turtle, xCoord, yCoord):
	turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.begin_fill()
	turtle.forward(40)
	turtle.left(30)
	turtle.forward(30)
	turtle.left(150)
	turtle.forward(90)
	turtle.left(150)
	turtle.forward(30)
	turtle.left(30)
	turtle.end_fill()
def main():
	donald = turtle.Turtle()
	donald.color("brown")
	boatBase(donald, 5,5)
main()

Notice that we place turtle.begin_fill()  right before we start drawing the shape and turtle.end_fill() right after the shape is finished and we want to fill it.
One neat thing about these commands is that, if the lines of the shape were not connected, it would close the shape automatically (I think, with a straight line connecting the start and end points) and then fill the whole thing.
Seems like the default fill color is the turtle's current color, so you can set this manually. You can also use the command .fillcolor() to change the color used for the fill.

SmokeyBrown · Answer

While we're talking about useful commands, I might as well share a resource I found explaining some of the common Turtle commands we might end up using: https://www.geeksforgeeks.org/turtle-programming-python/#:~:text=Commonly%20used%20turtle%20methods%20are%3A%20%20%20,the%20turtle%20clockwise%20%2015%20more%20rows%20

SmokeyBrown · Answer

And I do apologize, but I need to go for dinner soon. I'll try to be back online later. In the meantime, feel free to make as much progress as you can :)

Gucchi · Answer

@smokeybrown wrote:

Ok, looks like it worked :) Here is the code I used, with the addition of those fill commands import turtle def boatBase(turtle, xCoord, yCoord): turtle.penup() turtle.goto(xCoord, yCoord) turtle.pendown() turtle.begin_fill() turtle.forward(40) turtle.left(30) turtle.forward(30) turtle.left(150) turtle.forward(90) turtle.left(150) turtle.forward(30) turtle.left(30) turtle.end_fill() def main(): donald = turtle.Turtle() donald.color("brown") boatBase(donald, 5,5) main() Notice that we place turtle.begin_fill() right before we start drawing the shape and turtle.end_fill() right after the shape is finished and we want to fill it. One neat thing about these commands is that, if the lines of the shape were not connected, it would close the shape automatically (I think, with a straight line connecting the start and end points) and then fill the whole thing. Seems like the default fill color is the turtle's current color, so you can set this manually. You can also use the command .fillcolor() to change the color used for the fill.

It worked!

Gucchi · Answer

@smokeybrown wrote:

And I do apologize, but I need to go for dinner soon. I'll try to be back online later. In the meantime, feel free to make as much progress as you can :)

thats fine, i will try to make progress

Gucchi · Answer

@smokeybrown wrote:

While we're talking about useful commands, I might as well share a resource I found explaining some of the common Turtle commands we might end up using: https://www.geeksforgeeks.org/turtle-programming-python/#:~:text=Commonly%20used%20turtle%20methods%20are%3A%20%20%20,the%20turtle%20clockwise%20%2015%20more%20rows%20

this is useful was just checking it out

SmokeyBrown · Answer

Nice!
Now that we've worked with one example of how functions can be used to draw a shape, you may have some idea of how to define the functions for the other shapes you'll be using.
Best of luck for now, and I'll be back later~

SmokeyBrown · Answer

Oop, false alarm. Dinner won't be ready for me until the next hour or so, haha.
In the meantime, I suppose I'll hang around here if you need anything :)

Gucchi · Answer

@smokeybrown i made some progress check it out:

import turtle

def boatBase(turtle, xCoord, yCoord):

	turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.begin_fill()
	turtle.forward(40)
	turtle.left(30)
	turtle.forward(30)
	turtle.left(150)
	turtle.forward(90)
	turtle.left(150)
	turtle.forward(30)
	turtle.left(30)
	turtle.end_fill()

def poleBase(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.forward(25)
	turtle.left(90)
	turtle.forward(95)
	turtle.right(125)

def sailBase(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.begin_fill()
	turtle.right(45)
	turtle.forward(91)
	turtle.right(133)
	turtle.forward(64)
	turtle.end_fill()

def main():

	donald = turtle.Turtle()
	donald.color("brown")
	boatBase(donald, 5,5)
    pluto = turtle.Turtle()
	pluto.color("gray")
	poleBase(pluto, 3,5)
	goofy = turtle.Turtle()
	goofy.color("yellow")
	sailBase(goofy, 28,100)

main()

SmokeyBrown · Answer

Hey, looking pretty good!

That's the image I got when I ran your code. Excellent work :)

SmokeyBrown · Answer

Also, pretty fun names for the "turtles" lol

Gucchi · Answer

@smokeybrown wrote:

Also, pretty fun names for the "turtles" lol

couldnt think of anything else lol

Gucchi · Answer

was trying to follow this

SmokeyBrown · Answer

No worries, I think the names go well together :) I'd say the drawing turned out pretty similar to the reference pic, considering the tool we're using. I guess we could write another bit of code to get the sail on the left side if we wanted to, but I personally thing the picture looks good as it is, so it's up to you whether you want to pursue that. As for the rest of the requirements for this assignment, I think you've covered just about everything!

@gucchi wrote:

Give your artwork a name. Print the name to the output Draw a picture using the turtle. You can pick the subject of your picture. Some suggestions include a house, a car, a face, a robot. At least two programmer-defined functions must be used. Use at least one color apart from black. The picture should include color.

SmokeyBrown · Answer

Well, if you're satisfied with the result, I guess we can call it a job well done! Again, good work putting things together like that. I think you ought to be pretty pleased with your work :)

Gucchi · Answer

@smokeybrown wrote:

Well, if you're satisfied with the result, I guess we can call it a job well done! Again, good work putting things together like that. I think you ought to be pretty pleased with your work :)

im still adding a few things to it, so itll take about 10 more minutes.

SmokeyBrown · Answer

Sounds good, take your time.

I'm going to eat in a bit (for real this time), so I'll try to check in once I'm back :)

Gucchi · Answer

@smokeybrown i have finished the program.  Here it is:

import turtle

def boatBase(turtle, xCoord, yCoord):

	turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.begin_fill()
	turtle.forward(40)
	turtle.left(30)
	turtle.forward(30)
	turtle.left(150)
	turtle.forward(90)
	turtle.left(150)
	turtle.forward(30)
	turtle.left(30)
	turtle.end_fill()

def poleBase(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.forward(25)
	turtle.left(90)
	turtle.forward(95)
	turtle.right(125)

def sailBase(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.begin_fill()
	turtle.right(45)
	turtle.forward(91)
	turtle.right(133)
	turtle.forward(64)
	turtle.end_fill()

def blackLine(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
    turtle.left(103)
	turtle.forward(21)

def bblackLine(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.left(219)
	turtle.forward(10)

def ssailBase(turtle, xCoord, yCoord):
    turtle.penup()
	turtle.goto(xCoord, yCoord)
	turtle.pendown()
	turtle.begin_fill()
	turtle.right(139)
	turtle.forward(59)
	turtle.left(139)
	turtle.forward(64)
    turtle.end_fill()

def main():

	donald = turtle.Turtle()
	donald.color("brown")
	boatBase(donald, 5,5)
    pluto = turtle.Turtle()
	pluto.color("gray")
	poleBase(pluto, 3,5)
	goofy = turtle.Turtle()
	goofy.color("yellow")
	sailBase(goofy, 28,100)
	mickey = turtle.Turtle()
	mickey.color("black")
	blackLine(mickey, 67,21)
	minnie = turtle.Turtle()
	minnie.color("black")
	bblackLine(minnie, 28,100)
	daisy = turtle.Turtle()
	daisy.color("yellow")
	ssailBase(daisy, 19,93)
	print("SailBoat")

main()

Gucchi · Answer

btw the black lines are these

SmokeyBrown · Answer

Hey, that's pretty awesome. I think it looks great!

Again, nice work :)

Gucchi · Answer

thanks man

Gucchi · Answer

you were a huge help

Gucchi · Answer

i understand this whole turtle graphic thing way better now

SmokeyBrown · Answer

I'm very glad to hear that!
Just like most things in life, if you spend more time exposing yourself and practicing with a concept or technique, you'll definitely understand it better

I'm glad I could help :)

2 attachments

1 attachment

1 attachment

1 attachment

1 attachment

1 attachment

1 attachment

2 attachments

1 attachment
