moonwalk:

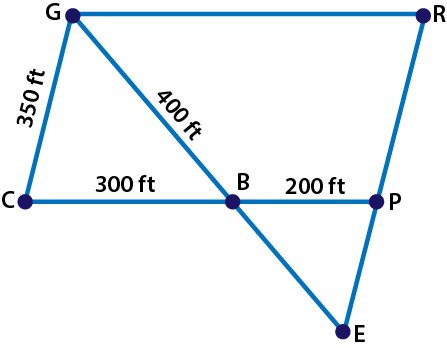

The diagram below models the layout at a carnival where G, R, P, C, B, and E are various locations on the grounds. GRPC is a parallelogram. Parallelogram GRPC with point B between C and P forming triangle GCB where GC equals 350 ft, CB equals 300 ft, and GB equals 400 ft, point E is outside parallelogram and segments BE and PE form triangle BPE where BP equals 200 ft. Part A: Identify a pair of similar triangles. Part B: Explain how you know the triangles from Part A are similar. Part C: Find the distance from B to E and from P to E. Show your work.
moonwalk:
@Hero @dude @Ultrilliam
moonwalk:
I know how to find similar triangles but the parallelogram is confusing me
moonwalk:
and i can't find a ratio
moonwalk:
hello? @hero
Hero:
Why is the parallelogram confusing you if you already know how to find the similar triangles?
moonwalk:
because there are 3 triangles and then i see a parallelogram and it makes me overthink. its not in a math way that it confuses me, it just the way i see it. like an illusion that has multiple things in the picture.
moonwalk:
idk how to explain it srry
Hero:
Well, there are things you already know about a parallelogram such as opposite sides are congruent.
Hero:
Knowing this you can label the opposite lengths of the parallelogram
moonwalk:
yes, that means RP is 350 ft
Hero:
Then you should know that vertical angles are congruent.
moonwalk:
so that means BE is 150?
moonwalk:
wait..
moonwalk:
no
Hero:
No, however, there is a trick that you can do to help: |dw:1577122406905:dw|
moonwalk:
well i know that GR is 500 because CB is 300 + BP which is 200
Hero:
|dw:1577122453355:dw|
moonwalk:
oh that creates another triangle
Hero:
You can flip the triangle so that it is inside the parallelogram
Hero:
It's the same triangle.
moonwalk:
oh
Hero:
So here's how you can do this...
moonwalk:
so that means the similar triangles are GCB and EPD?
Hero:
One moment. The opposite angles of a parallelogram are congruent but not necessarily the consecutive sides.
Hero:
Because of vertical angles are congruent we know that these two angles are congruent: |dw:1577123106078:dw|
Hero:
Also, because of alternate interior angles, you should know that angle G is congruent to angle E: |dw:1577123285175:dw|
Hero:
From there we can conclude the triangles are similar.
moonwalk:
so GCB and EPB are similar triangles
Hero:
I'll agree with that
moonwalk:
then if it is, for part c, finding the distance from B to E and from P to E i'll have to find a ratio/proportion?
Hero:
Correct. Are you able to set up the proportion?
moonwalk:
no not really
moonwalk:
would it be like PB/EP = CP/GC
moonwalk:
wait
moonwalk:
im pretty sure thats wrong
Hero:
Okay so try again
moonwalk:
EP/EB = CG/GB?
moonwalk:
what, where did that com from.
moonwalk:
thats not right either... sorry
moonwalk:
was my first guess close?
moonwalk:

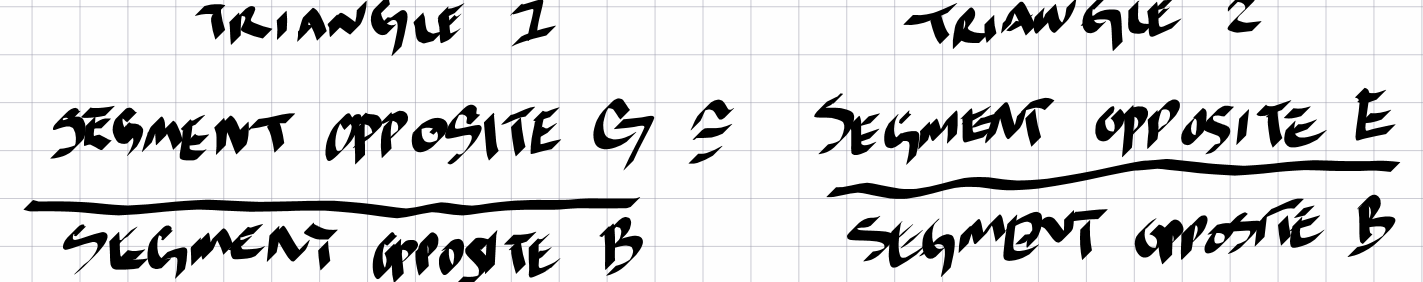

CB/CG = PB/PE
Hero:
Looks right now
moonwalk:
so now i plug it in, 300/350 = 200/x
moonwalk:
now i cross multiply?
Hero:
If you plugged everything in correctly and solve for x, you should get the correct value.
moonwalk:
im getting decimals
Hero:
What did you get?
moonwalk:
233.333 repeating
Hero:
Okay, let me check to make sure you input everything correctly.
Hero:
You input everything correctly so it should be correct. 233 + 1/3 feet
moonwalk:
ok so that means PE is 233 1/3 feet?
Hero:
Yes
moonwalk:
wait the ratio is 1.5
moonwalk:
that means GB is 266.66 repeating
moonwalk:
thank you
Hero:
?
Hero:
The ratio for 300/350 is 0.857 The ratio for 200/233.33 is also 0.857
moonwalk:
really? im dumb
Hero:
If the top number is smaller than the bottom number the ratio will be less than one.
moonwalk:
oh
Hero:
Did you find the distance from B to E?
gokrazy223:
where did you identify the triangle pairs
gokrazy223:
@Hero
Hero:
What do you mean?
gokrazy223:
how did you know they were similar triangles
Hero:
Because for any two triangles, if you can prove that two corresponding angles are congruent, then the third corresponding angles of will also be congruent.
gokrazy223:
okay and can you help meFind the distance from B to E and from P to E
Hero:
Do you not already have what you need?
gokrazy223:
no this topic is new to me and i need help if i had everything i need and knew what i was doing i wouldn't have to ask
gokrazy223:
can you help please
Hero:
Everything is explained above. The question is, 'Where are you confused?'.
