Question

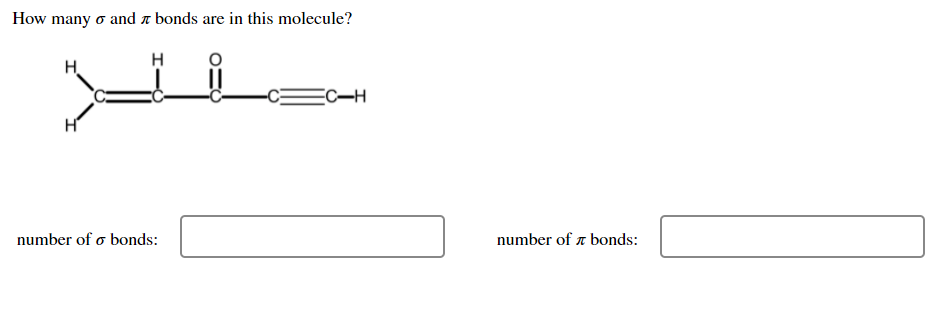

Bonds.

Answer 1

otae thx

Answer 2

@Vocaloid whenever you get the chance~

Answer 3

Wdym???

Answer 4

It's a Chemistry question, if you can't answer it, it's OK. I shouldn't really explain what it means. Thanks for replying though.

Answer 5

single bonds are \(\sigma\) bonds

double bonds consist of a \(\sigma\) bond and a \(\pi\) bond

triple bonds consist of one \(\sigma\) bond and two \(\pi\) bonds

Answer 6

Uh huh

Answer 7

how many single bonds do you have?
how many double bonds do you have?
how many triple bonds do you have?

for example:
if you have 2 double bonds, that means for each double bond you have a sigma bond and a pi bond

so if you have two double bonds, then you have 2 sigma bonds and 2 pi bonds

and if your molecule had 3 single bonds, then that's 3 sigma bonds

and so in all you have 2+3 or 5 sigma bonds and 2 pi bonds

Answer 8

you just have to look at each one by one and then add them all up

Answer 9

2 double bonds, 1 triple

Answer 10

and how many single bonds?

Answer 11

6 single bonds

Answer 12

Wait

Answer 13

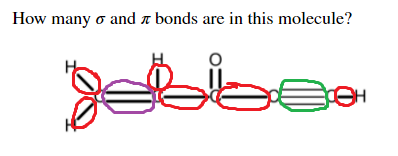

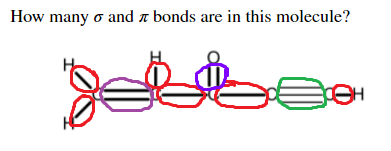

I forgot to color one of the double bonds oops but you're right

Answer 14

Oh ok I thought I was wrong

Answer 15

so we have

6 single bonds
2 double bonds
1 triple bond

each single bond is just a sigma bond

Answer 16

so we have 6 single bonds so how many sigma bonds so far?

Answer 17

6 sigma bonds

Answer 18

and then double bonds is made up of 1 sigma bond and 1 pi bond

so if we have 2 double bonds, how many sigma and pi bonds do we get from the 2 double bonds?

Answer 19

1 sigma 1 pi + 6 sigma bonds form single bonds

Answer 20

From*

Answer 21

7 sigma, 1 pi

Answer 22

hmm not exactly

so one double bond gives you 1 sigma and 1 pi bond

if you have another double bond, that means you have another sigma and pi bond

Answer 23

8 sigma 2 pi

Answer 24

there you go

and then we have one triple bond which we said consists of 1 sigma bond and 2 pi bonds

Answer 25

11 sigma, 8 pi

Answer 26

no no

triple bond doesn't mean we have 3 triple bonds

triple bond is the one with three lines
and it's triple because it's a stronger bond because it consists of 2 pi bonds and 1 sigma bond
2 + 1 = 3 hence triple bond

Answer 27

Bruh

Answer 28

Why did I major in this

Answer 29

so like these bonds are between two elements, right?

O = C = O
there's two bonds here and both of them are double bonds

or you could have

H
H - C - H
H

there's four single bonds

Answer 30

Right

Answer 31

so we only had one triple bond

and each triple bond consists of 1 sigma bond and 3 pi bonds

Answer 32

9 sigma, 10 pi?

Answer 33

I think you mixed up your previous answer

6 single bonds --> 6 sigma bonds
2 double bonds --> 2 sigma bonds + 2 pi bonds
1 triple bond --> 1 sigma bond + 2 pi bonds

Answer 34

9 sigma 4 pi

Answer 35

ta-da!

Answer 36

I did mix up my previous answer

Answer 37

Let me do this by myself and see

Answer 38

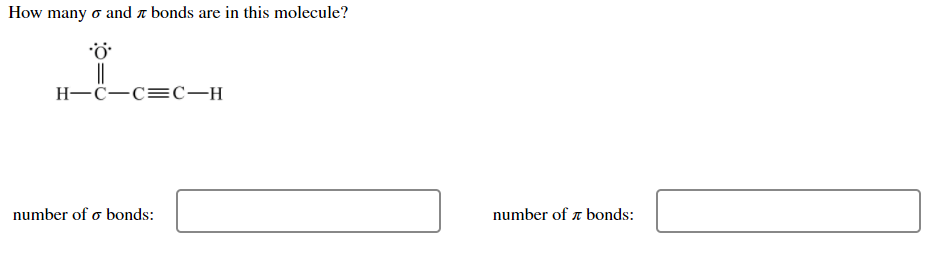

3 single bonds - 3 sigma
1 double bond - 1 sigma 1 pi
1 triple bond - 1 sigma 2 pi

Answer 39

5 sigma 3 pi

Answer 40

?!

Answer 41

Well done!

Answer 42

Look at me
